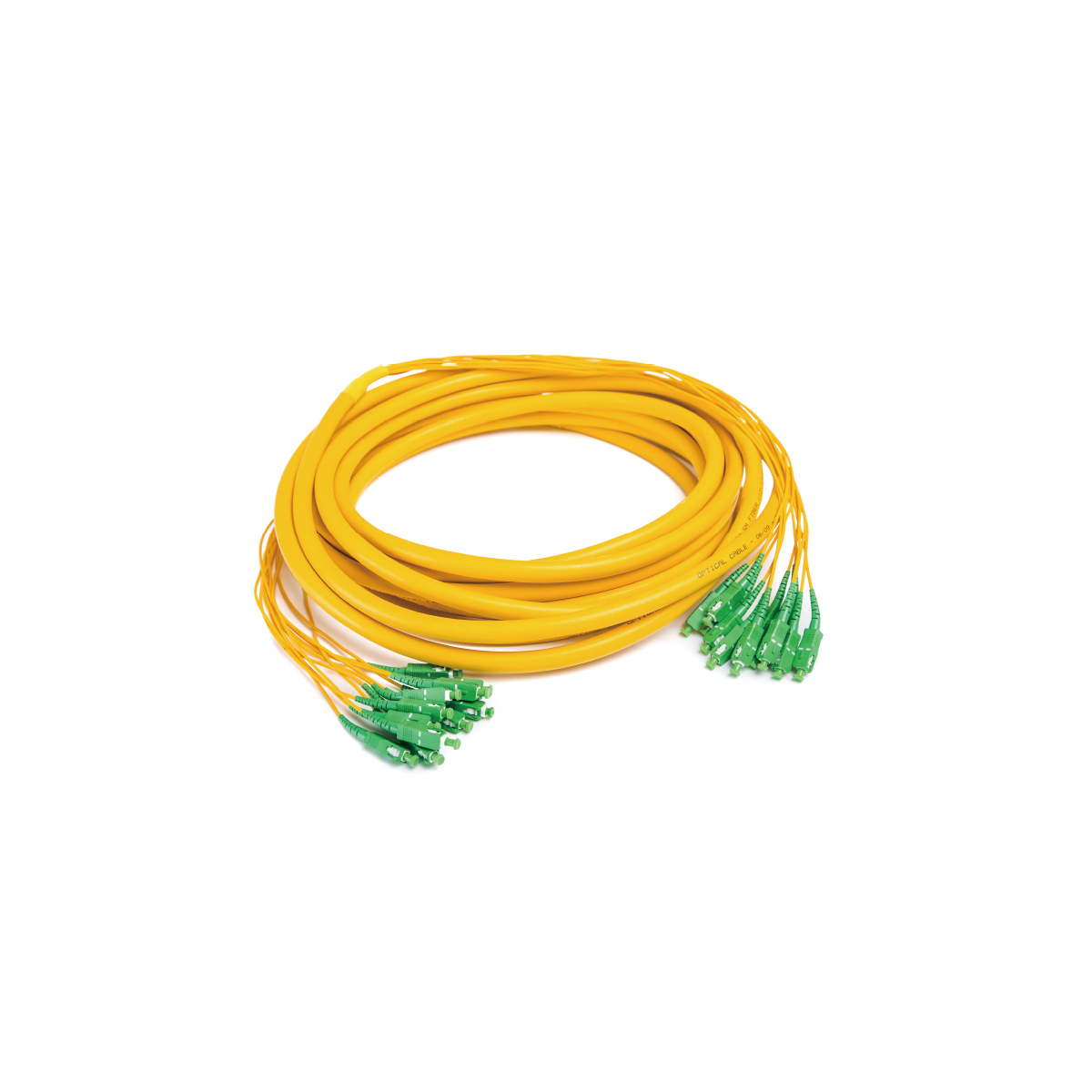

Fiber Optic Bundle Patch Cord

SKU aec6b472152a Category

Bundle patch cord ismulti-core roundcablewith conventional optical fiber connector at both ends. Black branch or heat protection tube is used as branch node which can save cost and ensure excellent mechanical and optical performance.
Profiber’s bundle patch cord provide high reliability and flexibility in different application. All bundle patch cord can be customized in cable length, color and connector types to suit each customer requirement with our advanced technology and production facilities.

  • High-quality ferrules
  • 4-144 core available
  • 100% Factory tested assemblies
  • Low insertion loss, high return loss
  • Small volume, high fiber density
  • Good exchangeability and durability
  • Stable optical properties



Mechanical Data Value
Connector Type  LC/SC/FC/ST
Polarity Type A to B, A to A
Branch Cable Diameter 0.9mm, 2.0mm, 3.0mm
Cable Jecket Color Yellow, Orange, Aqua, Violet and OEM colors



Optical Data Value
Fiber Mode OS1/OS2/G657‒9/125 bend insensitive(A.1 or A.2) or OM1/2/3/4/5
Test Wavelength 1310nm/1550nm (Singlemode), 850nm/1500nm (Multimode)
Insertion Loss Insertion Loss Singlemode ≤0.10dB, Multimode ≤ 0.10dB
Return Loss Singlemode ≤0.30dB, Multimode ≤ 0.30dB
Return Loss Singlemode UPC ≥ 55dB APC ≥ 65dBMultimode UPC ≥ 25dB
