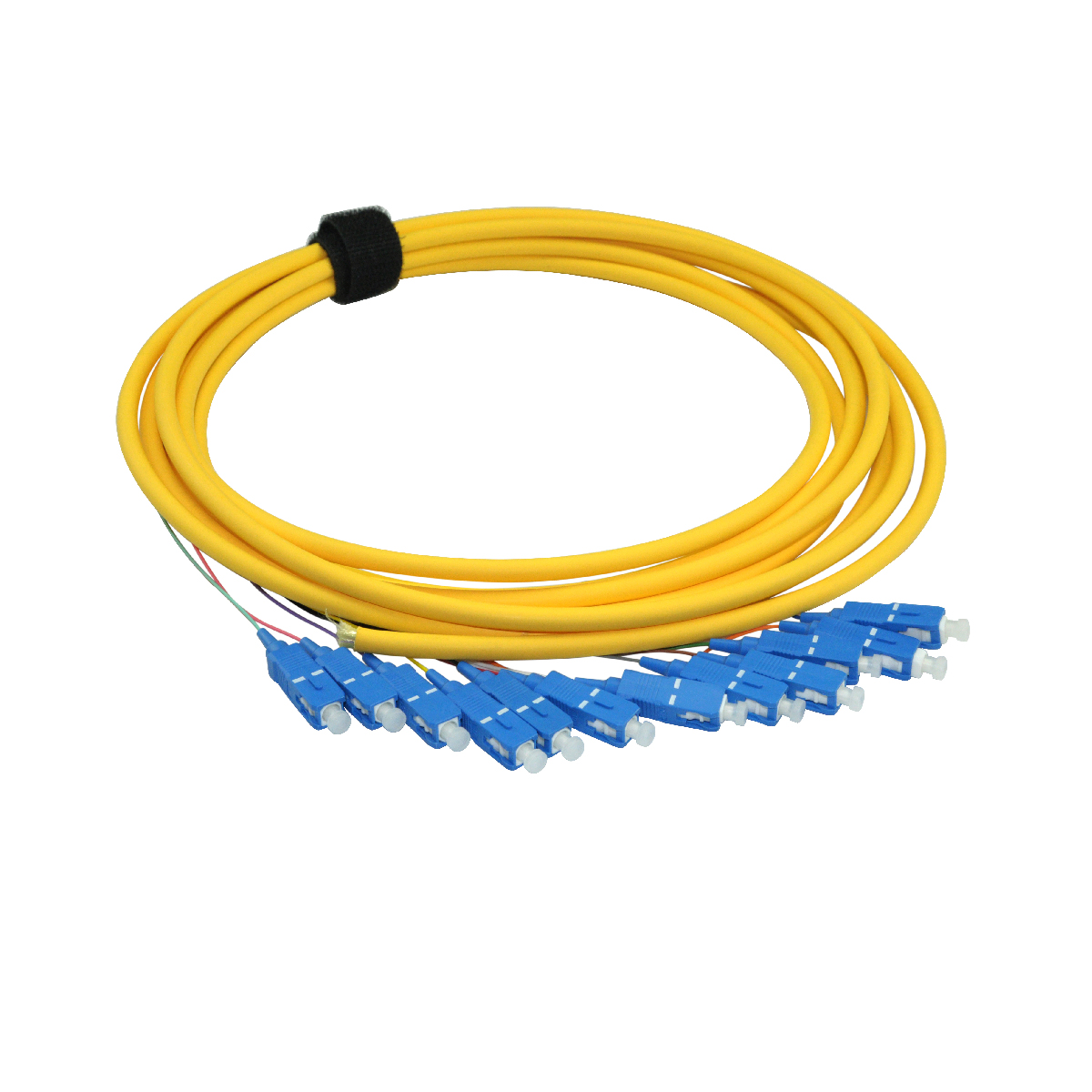

Fiber Optic Bundle Pigtail

SKU ae6212e76f4e Category

Fiber optic bundle pigtail assemblies are available in various fiber counts, with distribution cable or outside plant
cable. Outside plant cable assemblies utilize end-blocking kits for water protection and bundle tubing for fiber
ruggedizing, distribution is 900um tight buffered and typically not ruggedized, depending on the application.
While fiber optic bundle pigtails assemblies are most often pigtail, patch cord (jumpers) are also available and
provide numerous installation advantages.
Profiber’s bundle pigtail provide high reliability and flexibility in different application. All bundle pigtail can be
customized in cable length, color and connector types to met each customer requirement with our advanced
technology and production facilities.

  • High-quality ferrules
  • 100% Factory tested assemblies
  • Low insertion loss, high return loss
  • Good repeatability and interchange



Mechanical Data Value
Connector Type  LC/SC/FC/ST
Cable Jecket Color Yellow, Orange, Aqua, Violet and OEM colors
Branch Cable Diameter 0.9 mm
Branch Cable Color 12 color : Blue, Orange, Green, Brown, Gray, White, Red, Black, Yellow, Violet, Rose, Aqua



Optical Data Value
Fiber Mode OS1/OS2/G657‒9/125 bend insensitive(A.1 or A.2) or OM1/2/3/4/5
Test Wavelength 1310nm/1550nm (Singlemode), 850nm/1300nm (Multimode)
Standard Insertion loss Singlemode ≤0.10dB, Multimode ≤ 0.10dB
Return Loss Singlemode ≤0.30dB, Multimode ≤ 0.30dB
Return Loss Singlemode UPC ≥ 55dB APC ≥ 65dB
Multimode UPC ≥ 25dB
