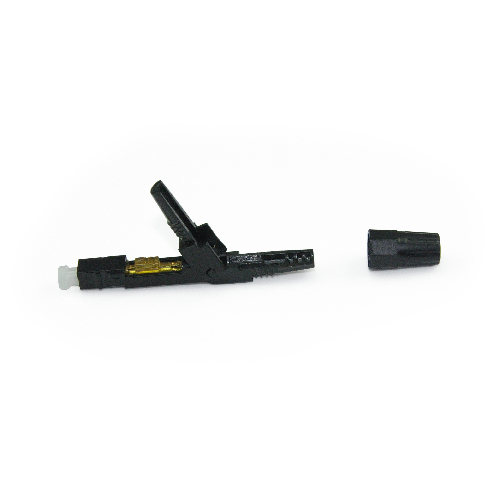

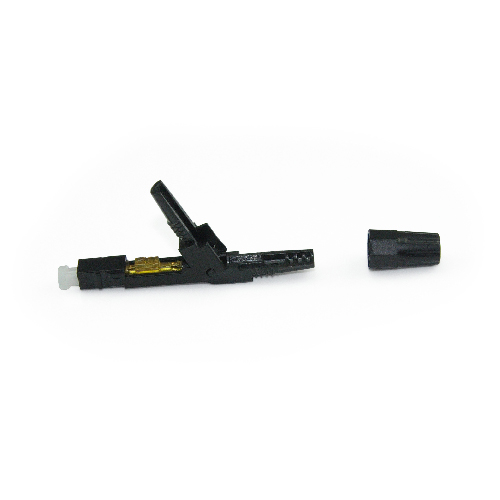

FC Embedded Fast Connector

SKU 7e73b19b32ea Categories ,

Fast connectors are factory pre-polished connectors that completely eliminate the
need for hand polishing in the field. Proven mechanical splice technology ensuring
precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary
index-matching gel combine to offer an immediate low loss termination to either
single-mode or multimode optical fibers.

  • Low insertion loss, high return loss
  • Embedded structure
  • New unique design, installation without the need to inject glue, no grinding
  • Easy to operation and quick construction
  • Can provide quick and easy termination of fibers in the field
  • High installation quality, high success rate and high reliability
  • No limitation of operation environment
  • Tools are simple and portable


Item Parameter
Connector Type SC、FC
Housing Color Blue+Black, Green+Black, Metallic+Black
Insertion Loss Typical≤0.30dB
Return Loss UPC≥ 45dB, APC≥ 55dB
Temperature Alteration Ratio ≤0.20dB
High temperature test 80°/96H,IL≤0.20dB
Low temperature test -40°/96H,IL≤0.20dB
Housing Material Plastic or metal
Boot(Option) 3.0mm, 2.0mm, 0.9mm or 2.0 * 3.0mm
Operating Temperature -40℃ to +70℃
Storage Temperature -40℃ to +85℃
