- Bend-insensitive/bendoptimizedfibers
- SM and MM performance types

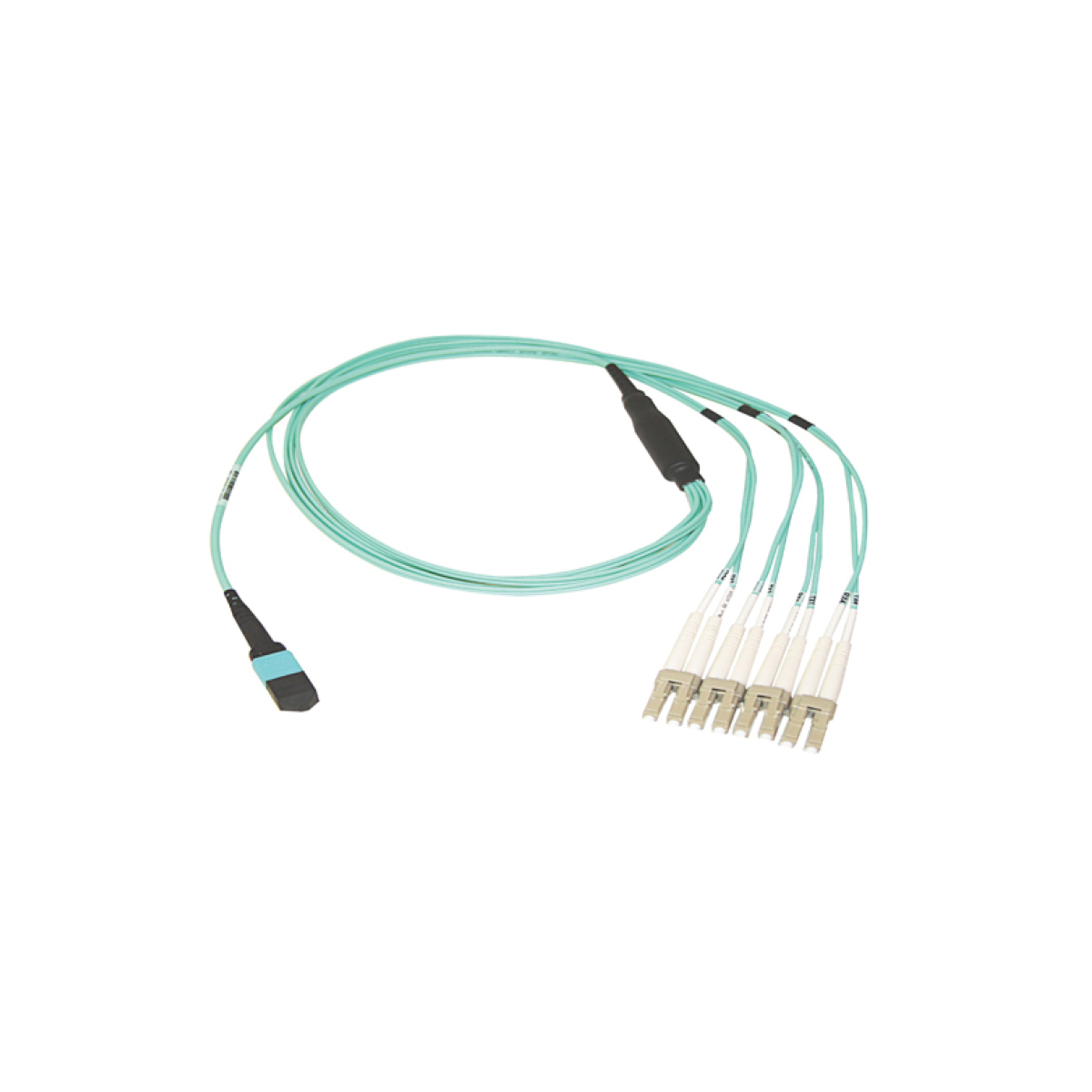

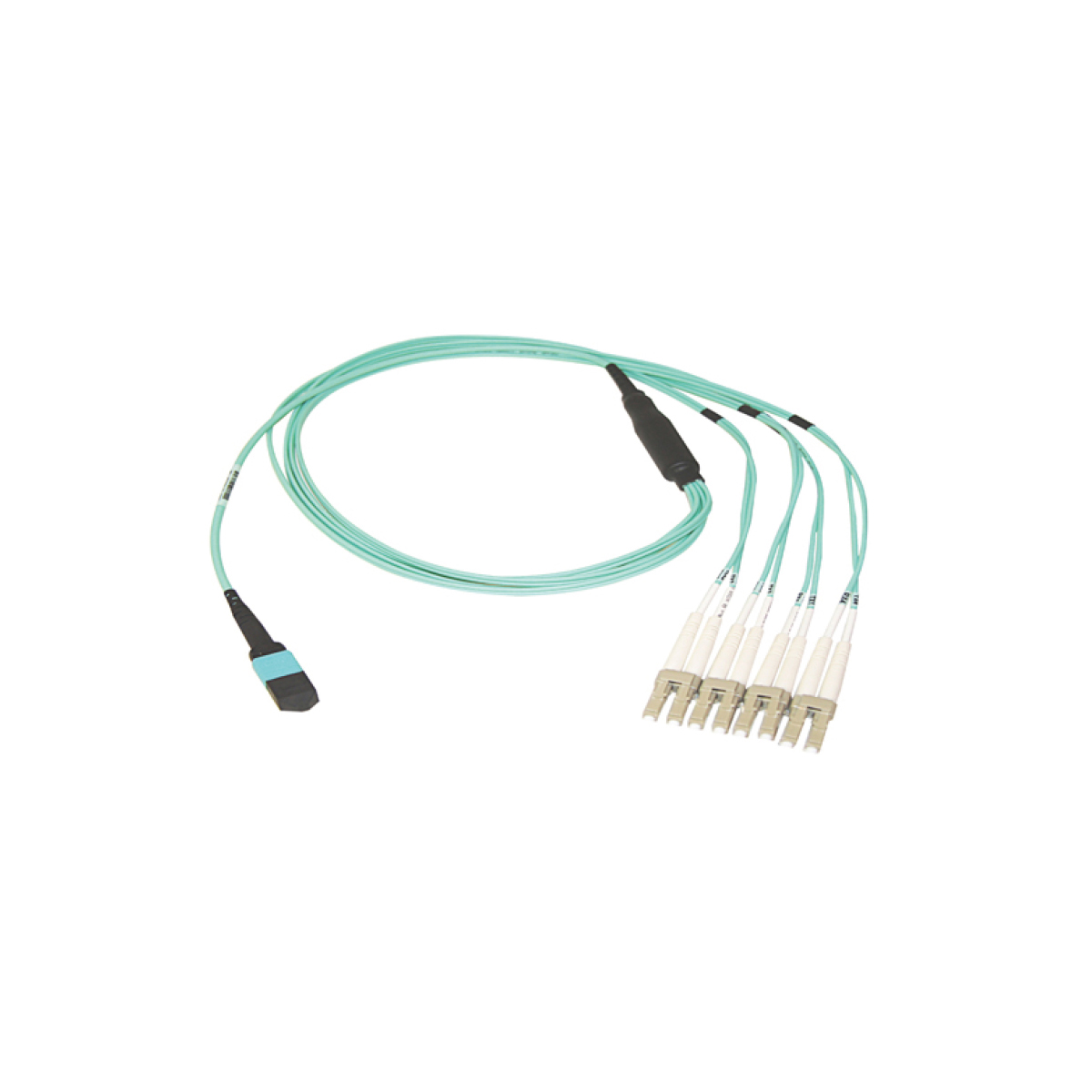

- MTP/ MPOonone end, withstandard connectorsonanother end
- MTP/ MPOin 8/12/24 fiber optional
- Connector interface available inLC,SC,ST, FC, uniboot LC
- Customizedfurcation lengthto cater for different installationsituations
- Roundor square sub-branch 0.9/2.0/3.0mm
| Mechanical Data | Value | 8F | 12F | 24F |
| MTP/MPO Connector | – | 12 | 12 | 24 |
| Outer Sheath Thickness | mm | 0.8 | 0.8 | 0.8 |
| Cable Outer Diameter | mm | 3.0mm ±0.2 | 3.0mm ±0.2 | 4.6mm ±0.2 |
| Min Bending Radius Dynamic | mm | 15D | ||
| Min Bending Radius Static | mm | 30D | ||
| Cable Jacket Color | – | Yellow, Orange, Aqua, Violet and OEM colors | ||
| Branch Of Connector | – | LC, SC, ST, FC, Uniboot LC | ||
| Optical Data | Value |
| Fiber Mode | OS1/OS2/G657-9/125 bend insensitive (A.1 or A.2) or OM1/2/3/4/5 |
| Test Wavelength | 1310nm/1550nm (Singlemode), 850nm/1300nm (Multimode) |
| MPO/MTP Insertion Loss (Low ) | Singlemode≤0.35dB, Multimode≤0.35dB |
| MPO/MTP Insertion Loss (Standard) | Singlemode≤0.50dB, Multimode≤0.50dB |
| MPO/MTP Return Loss | Singlemode UPC≥50dB APC≥60dB Multimode UPC≥25dB |
| Branch Insertion Loss (Low) | Singlemode≤0.15dB, Multimode≤0.15dB |
| Branch Insertion Loss (Standard) | Singlemode≤0.30dB, Multimode≤0.30dB |
| Branch Return Loss | Singlemode UPC≥55dB APC≥65dB Multimode UPC≥25dB |
