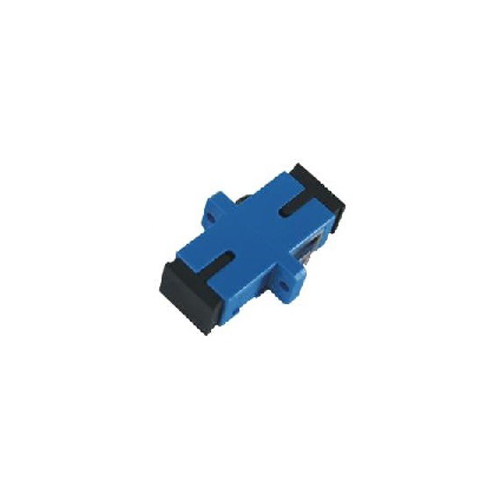

SC Adaptor

SKU 37e48d07170e Categories ,

Fiber optic adapter is mainly used for connection and fixing of optical fiber connectors.
With precise ceramic sleeve, this range of fiber optic components could ensure perfect
alignment between ferrules of the two connectors combined. Therefore, optical signal
is transmitted through the fiber connectors with little insertion loss

  • Excellent Changeability and Directivity
  • 100% optic test(Insertion Loss)
  • Ceramic and phosphor bronze sleeve tube optional
  • Accurate external size
  • Individual package available
  • Standard sleeve,Various adaptor option: LC、SC、FC、ST、E2000、MU、DIN etc.



Item Parameter
Connector Type           ST、SC、FC、LC、MTRJ、MU、MPO、E2000
Fiber Type                    SM                 MM
Color      Blue, Green, Metallic        Beige, Metallic, Aqua
 Testing Wavelength         1310nm, 1550nm          850nm, 1300nm
Insertion Loss          Typical≤0.15dB,max.≤0.20dB
Repeatability                     ≤0.10dB
Exchangeability                      ≤0.20dB
Durability           1000 Mating, max≤0.20dB
Channel Number            Single core, dual-core, four cores
Housing Material                Plastic or metal
Alignment Sleeve               Ceramic (ZrO2) or customized
Operating Temperature                    40℃ to +80℃
Storage Temperature                    -40℃ to +85℃
