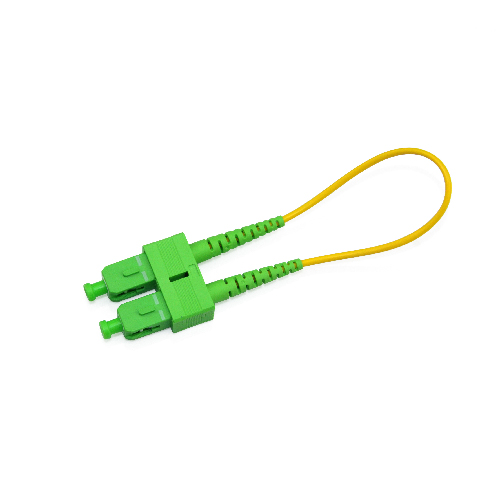

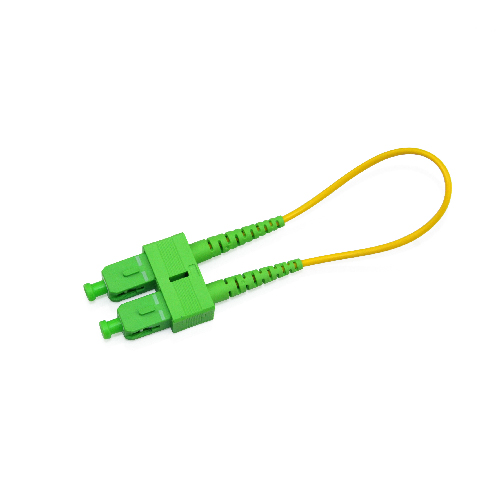

SC Fiber Optic Connector

SKU 2803a3424b26 Categories ,

Fiber Optic Connector is an important components used in the fiber optic network.
It is also the key part used in fiber optic patch cable and fiber optic pigtail. There are
various fiber optic connectors.at Fiber Mania, we provide a complete line of one piece
fiber optic connectors with various types, including standard connectors and irregular
types and epoxy types, for both single mode and multimode applications

  • Low insertion loss
  • Corrosion resistant body
  • Ultra low back reflection
  • For 3.0mm, 2.0mm jacket or 900um buffer
  • One Piece with pre-domed ceramic ferrule is designed for easy assembly
  • Meets Telecordia-GR-326-CORE specifications



Item Parameter
Connector Type ST、SC、FC、LC、MU
Fiber Type             SM             MM
Color    Blue, Green, Metallic         Beige, Metallic, Aqua
 Testing Wavelength   1310nm, 1550nm      850nm, 1300nm
Insertion Loss Typical≤0.20dB,max.≤0.30dB
Repeatability ≤0.20dB
Exchangeability ≤0.20dB
Durability 1000 Mating, max≤0.20dB
Channel Number Single core, dual-core
Housing Material Plastic or metal
Boot(Option) 3.0mm, 2.0mm or 0.9mm
Ferrule -Ceramic (ZrO2) or customized
Operating Temperature -40℃ to +80℃
Storage Temperature -40℃ to +85℃
