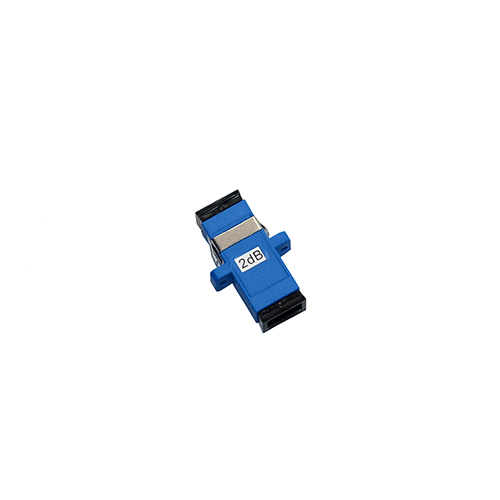

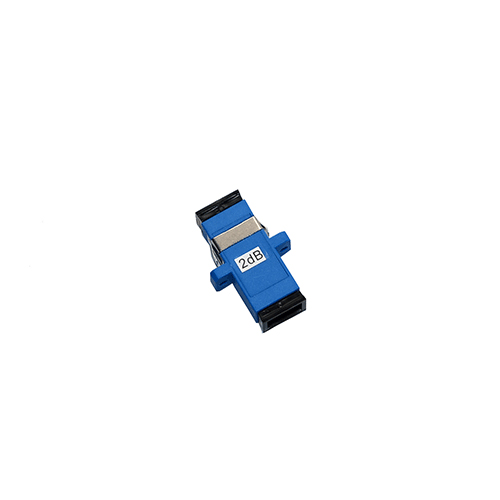

SC Flange Attenuator

SKU 8a82dd4954bd Categories ,

This series of Flange attenuator has the same appearance as a regular fiber optic adapter.
It achieves attenuation of optical signal by setting up an attenuation film inside a fiber
optic adapter to ensure incomplete touch with fiber connectors. Due to this principle,
the Flange attenuator is a great fiber optic attenuation solution for fiber optic patch
cords in an optical link.
As a trusted and dedicated manufacturer of fiber attenuators, we can supply a wide
selection of adapter type Flange attenuators. These fixed optical attenuators are only
suitable for fiber optic connectors with PC type ferrule end face. The attenuation value
can be 1, 3, 5, 7, 10, 15 and 20dB, and thus our fixed attenuators are applicable for optical
signal with wavelength ranging from 1250nm to 1600nm.

  • Excellent Changeability and Directivity
  • 100% optic test(Insertion Loss)
  • Accurate attenuation
  • Low polarization related loss
  • Individual package available
  • Standard sleeve,Various adaptor option: LC、SC、FC、ST etc



Item Parameter
Connector Type ST、SC、FC、LC
Fiber Type             SM             MM
Color    Blue, Green, Metallic         Beige, Metallic, Aqua
 Testing Wavelength   1310nm, 1550nm      850nm, 1300nm
Insertion Loss      1, 3, 5, 7 , 10, 15, 20dB (±10%)
Return Loss

         1250~1650nm

    PC≥ 25dB

 Operating Bandwidth Range 1250~1650nm
Housing Material Plastic or metals
Alignment Sleeve Ceramic (ZrO2) or customized
Operating Temperature -20℃ to +70℃
Storage Temperature -40℃ to +85℃
