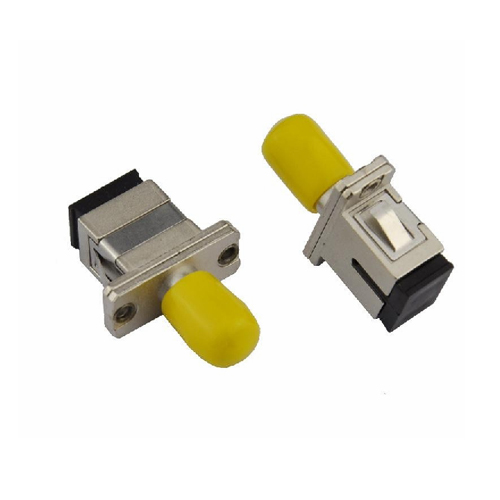

SC ST Adaptor

SKU cc40dfa45934 Categories ,

The hybrid fiber adapter is a special style of fiber optic adapter that supports precision
connection of different types of fiber optic connectors. The precise ceramic sleeve inside
of the optic adapter achieves perfect alignment between the ferrules of these two
different connectors, thus decreasing loss during signal transmission.

  • Excellent Changeability and Directivity
  • 100% optic test(Insertion Loss)
  • Ceramic and phosphor bronze sleeve tube optional
  • Accurate external size
  • Individual package available
  • Standard sleeve,Various adaptor option: LC、SC、FC、ST、E2000、MU、DIN etc.


Item Parameter
Connector Type           ST、SC、FC、LC、MTRJ、MU、MPO、E2000
Fiber Type                    SM                 MM
Color      Blue, Green, Metallic        Beige, Metallic, Aqua
 Testing Wavelength         1310nm, 1550nm          850nm, 1300nm
Insertion Loss          Typical≤0.15dB,max.≤0.20dB
Repeatability                     ≤0.10dB
Exchangeability                      ≤0.20dB
Durability           1000 Mating, max≤0.20dB
Channel Number            Single core, dual-core
Housing Material                Plastic or metal
Alignment Sleeve               Ceramic (ZrO2) or customized
Operating Temperature                    40℃ to +80℃
Storage Temperature                    -40℃ to +85℃
