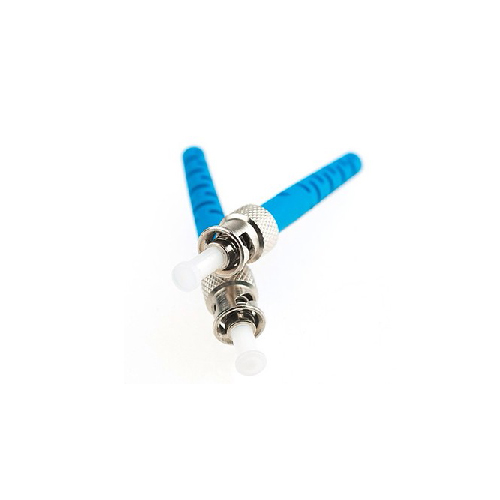

ST Fiber Optic Connector

SKU dad1f122b0b2 Categories ,

Fiber Optic Connector is an important components used in the fiber optic network.
It is also the key part used in fiber optic patch cable and fiber optic pigtail.
There are various fiber optic Fiber Mania, we provide a complete line
of one piece fiber optic connectors with various types, including standard connectors
and irregular types and epoxy types, for both single mode and multimode applications

  • Low insertion loss
  • Corrosion resistant body
  • Ultra low back reflection
  • For 3.0mm, 2.0mm jacket or 900um buffer
  • One Piece with pre-domed ceramic ferrule is designed for easy assembly
  • Meets Telecordia-GR-326-CORE specifications


Item Parameter
Connector Type


Fiber Type SM MM
Color Blue, Green, Metallic Beige, Metallic, Black
 Testing Wavelength 1310nm, 1550nm 850nm, 1300nm
Insertion Loss Typical≤0.20dB,max.≤0.30dB
Repeatability ≤0.20dB
Exchangeability ≤0.20dB
Durability 1000 Mating, max≤0.20dB
Channel Number Single core, dual-core
Housing Material Plastic or metal
Boot(Option) 3.0mm, 2.0mm or 0.9mm
Ferrule Ceramic (ZrO2) or customized
Operating Temperature -40℃ to +80℃
Storage Temperature -40℃ to +85℃
